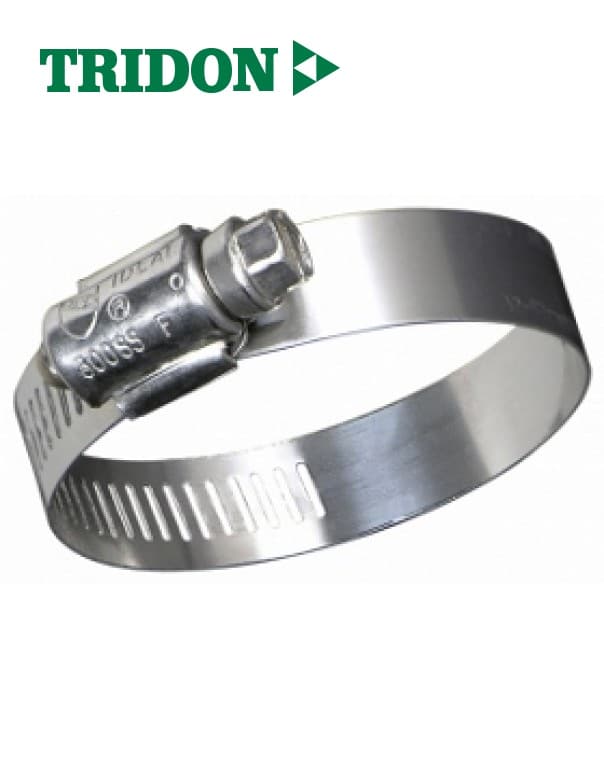

Tridon 620 Range 1/2" (12.7mm) Band Full SS
Tridon 620 Range 1/2" (12.7mm) Band Full SS

Tridon 620 Range 1/2″ (12.7mm) Band Full SS

U.S. Design worm drive

A good all rounder hose clip

1/2″ (12.7mm) band width

Full stainless steel

Enquire Now

Description

A good all-round general purpose hose clip.

Can be used in many industries.

U.S. designed half inch band clamp.

300 grade stainless steel worm drive hose clamp.

Designed for greater resistance to corrosion.

Featuring the UPC shield, it is commonly used where corrosion resistance is important.

Application uses:

  • Home
  • Plumbing
  • Underground
  • General purpose
  • Automotive





Technical Specifications

Material Specifications

Screw: 5/16″ Hex Head; 300 Stainless

UPC  Shield: 300 Stainless

Band: 1/2″; 300 Stainless

Installation Torque: 35 in-lbs (4 Nm)



Stock Code Size (mm) Size (Inches)
T620-006 9-22
T620-008 11-25 7/16 – 1
T620-010 13-27 1/2 – 1 1/16
T620-012 20-32
T620-016 17-38
T620-020 19-44 3/4 – 1 3/4
T620-024 25-51 1 – 2
T620-028 32-57 1 1/4 – 2 1/4
T620-032 26-63
T620-036 46-70
T620-040 52-76
T620-044 57-82 2 1/4 – 3 1/4
T620-048 65-89
T620-052 71-95
T620-056 78-101
T620-060 83-108 3 1/4 – 4 1/4
T620-064 64-114 2 1/2 – 4 1/2
T620-072 76-127 3 – 5
T620-084 95-146
T620-096 114-165 4 1/2 – 6 1/2
T620-104 127-178 5 – 7
T620-128 165-216
T620-152 51-254
T620-188 52-311
