JCS Hi-Grip Zinc Plated
JCS Hi-Grip Zinc Plated
JCS Hi-Grip zinc-154

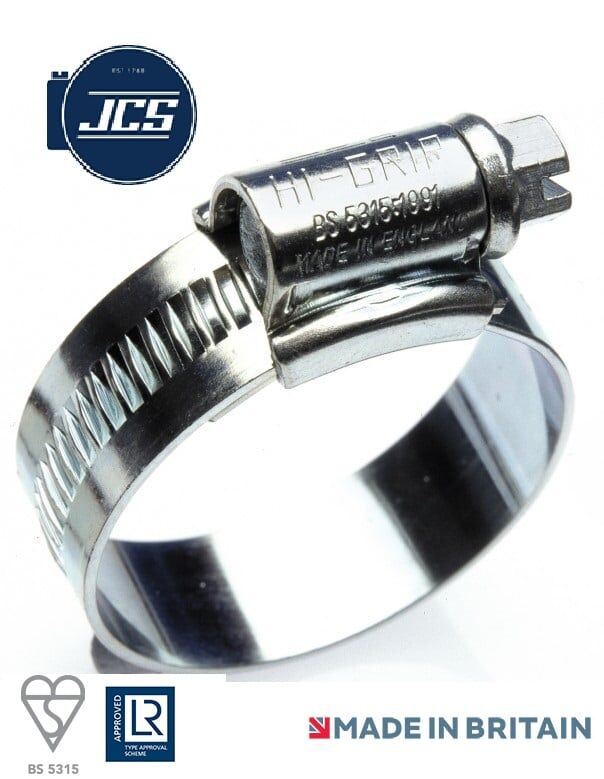

JCS Hi-Grip Zinc Plated BS5315 Hose Clips (HGZ Range)

Hi-Grip general purpose worm drive hose clips are regarded universally as being the HIGHEST QUALITY clip available in the market today.

They are manufactured to BS5315 and have BSI Kitemark, Lloyds register approved and N.A.T.O. approvals.

Zinc plated

Made in Great Britain

JCS Range HGZ

Enquire Now

Description

Hi-Grip general purpose worm drive hose clips are regarded universally as being the highest quality clip available in the market today. Their tough construction will stand a great deal of abuse.

They are manufactured to BS5315, have BSI Kitemark, Lloyds register approved and have N.A.T.O. approvals.

The standard version of Hi-Grip is made from heavily zinc plated mild steel and is used for a wide variety of domestic, automotive and industrial applications.

All Hi-Grip and Hi-Grip stainless hose clips have fully rounded edges to give the best possible protection to the hose.

Made in Great Britain

Material Specification
HI-GRIP
All Parts-Mild Steel, Bright Zinc Plated and Passivated

Stock Code Size Old Size No. Diameter (mm) Diameter (Ins.)
HGZ012 12 OOO 9.5 -12 3/8 – 1/2
HGZ016 16 MOO 11-16 1/2 – 5/8
HGZ020 20 00 13-20 1/2 – 3/4
HGZ022 22 0 14-22 5/8 – 7/8
HGZ025 25 OX 17-25 3/4 – 1
HGZ030 30 1A 22-30 7/8 – 1 1/8
HGZ035 35 1 25-35 1 – 1 3/8
HGZ040 40 1X 30-40 1 1/8 – 1 5/8
HGZ045 45 – 35-45 1 3/8 –  13/4
HGZ050 50 2A 35-50 1 3/8 – 2
HGZ055 55 2 40-55 1 5/8 – 2 1/8
HGZ060 60 2X 45-60 1 3/4 – 2 3/8
HGZ070 70 3 50-70 2 – 2 3/4
HGZ080 80 3X 60-80 2 3/8 – 3 1/8
HGZ090 90 4 70-90 2 3/4 – 3 1/2
HGZ100 100 4X 80-100 3 1/8 – 4
HGZ120 120 5 90-120 3 1/2 – 4 3/4
HGZ140 140 6 & 6X 110-140 4 3/8 – 5 1/2
HGZ160 160 7 130-160 5 1/8 – 6 1/4
HGZ180 180 – 150-180 5 7/8 – 7 1/8
HGZ200 200 – 170-200 6 5/8 – 7 7/8
HGZ220 220 – 190-220 7 1/2 – 8 5/8
HGZ240 240 – 210-240 8 1/4 – 9 1/2
HGZ260 260 – 230-260 9 – 10 1/4
HGZ280 280 – 250-280 9 7/8 – 11
HGZ300 300 – 270-300 10 5/8 – 11 3/4
HGZ320 320 – 290-320 11 3/8 – 12 1/2
HGZ340 340 – 310-340 12 1/4 – 13 3/8
HGZ360 360 – 330-360 13 – 14 1/8
HGZ380 380 – 350-380 13 3/4 – 15
HGZ400 400 – 370-400 14 1/2 – 15 3/4
HGZ420 420 – 390-420 15 3/8 – 16 1/2
HGZ440 440 – 410-440 16 1/8 – 17 3/8
HGZ460 460 – 430-460 16 7/8 – 18 1/8
HGZ480 480 – 450-480 17 3/4 – 18 7/8
HGZ500 500 – 470-500 18 1/2 – 19 5/8
