Description

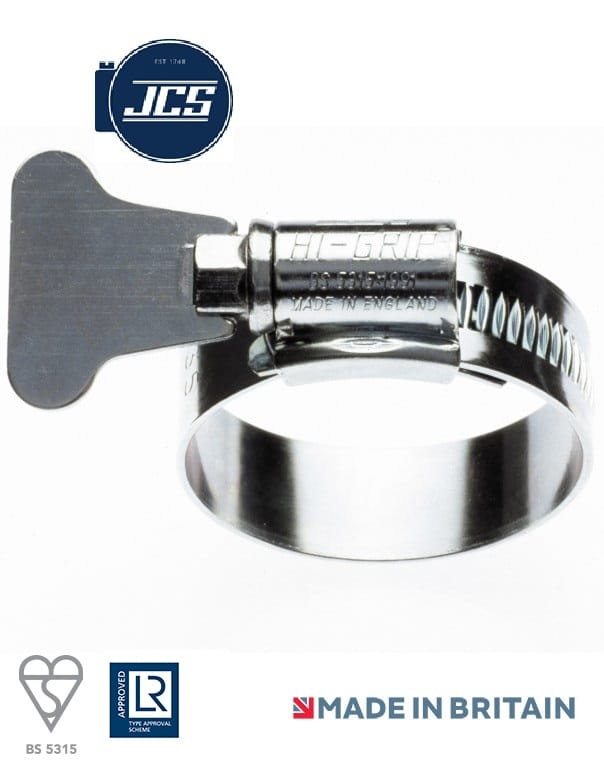

The Hi-Grip wing screw hose clip was specifically designed to answer the problem of frequently removed hoses such as found in the garden, home, laboratory and industry. The unique dovetail locking and side lugs of the wing plate guarantee a firm fixture that outlasts those of other designs. They can be supplied with a soft plastic wing plate cover to protect fingers. The super free-running and high efficiency worm drive gives excellent sealing.
All Hi-Grip hose clips have fully rounded edges to give the best possible protection to the hose.
They are manufactured to BS5315 and have BSI Kitemark, Lloyds register approved and N.A.T.O. approved.
Zinc plated
JCS Range WSZC, WSZP
Technical Specifications
ZINC PLATED ,electroplated, passivated and tested to EN9227.
British Standard BS5315
Kitemarked
| Stock Code | Size | Diameter (mm) | Diameter (ins.) |
| TP012 | 12 | 9.5 -12 | 3/8 – 1/2 |
| TP016 | 16 | 11-16 | 1/2 – 5/8 |
| TP020 | 20 | 13-20 | 1/2 – 3/4 |
| TP022 | 22 | 14-22 | 5/8 – 7/8 |
| TP025 | 25 | 17-25 | 3/4 – 1 |
| TP030 | 30 | 22-30 | 7/8 – 1 1/8 |
| TP035 | 35 | 25-35 | 1 – 1 3/8 |
| TP040 | 40 | 30-40 | 1 1/8 – 1 5/8 |
| TP045 | 45 | 35-45 | 1 3/8 – 1 3/4 |
| TP050 | 50 | 35-50 | 1 3/8 – 2 |
| TP055 | 55 | 40-55 | 1 5/8 – 2 1/8 |
| TP060 | 60 | 45-60 | 1 3/4 – 2 3/8 |
| TP070 | 70 | 50-70 | 2 – 2 3/4 |
| TP080 | 80 | 60-80 | 2 3/8 – 3 1/8 |
| TP090 | 90 | 70-90 | 2 3/4 – 3 1/2 |
