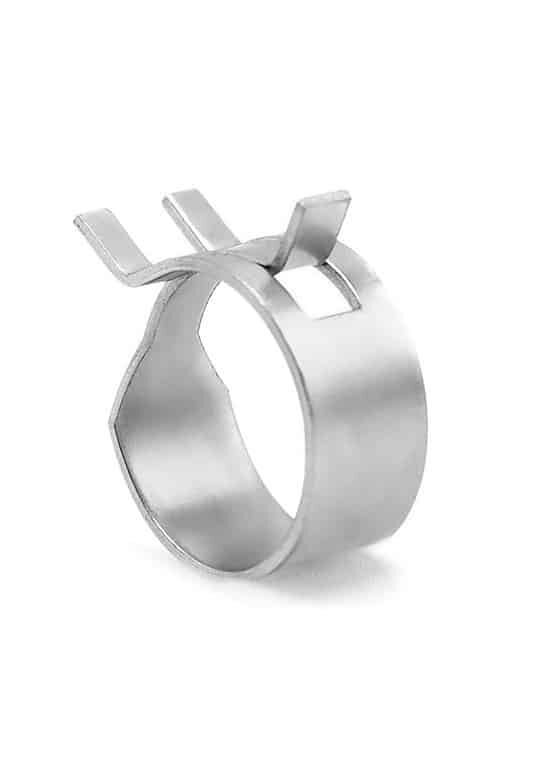

Spring Clip

£0.00

Spring clips are ideal for use where expansion and contraction of the hose is subject to changes in temperature.

Material: Spring Steel

Finish: Silver-White Cr3 Zinc plated

(DCTC Range)

Enquire Now

Description

Quick and easy to assemble, spring clips are to designed to offer uniformed distribution of pressure around the application hose.

Ideal for use where expansion and contraction of the hose is subject to changes in temperature.



(DCTC Range)

Technical Specifications



NOMINAL Ø mm OUR PART NO. Ø di     mm b a +/-0.05 s
6 DCTC14025 5.5 +/-0.1      7 3.0 0.5
7 DCTC14033 6.4 +/-0.1 7 3.0 0.5
8 DCTC14041 7.4 +/-0.15 8 3.0 0.6
9 DCTC14050 8.4 +/-0.15 8 3.5 0.6
10 DCTC14068 9.3 +/-0.2 8 3.5 0.7
11 DCTC14076 10.3 +/-0.2 8 4.0 0.7
12 DCTC14084 11.1 +/- 0.2 8 4.0 0.7
14 DCTC14092 12.9 +/- 0.2 8 4.0 0.8
15 DCTC14105 13.5 +/- 0.2 8 5.2 0.8
17 DCTC14113 15.6 +/-0.2 8 5.0 0.8
20 DCTC14121 18.4 +/- 0.4 8 5.2 0.8
