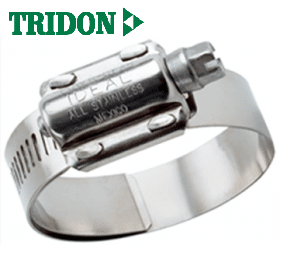

Tridon 843 Pow-R Gear Lined Heavy duty Hose Clip Full SS
Tridon 843 Pow-R Gear Lined Heavy duty Hose Clip Full SS

Tridon 843 Pow-R Gear Lined Heavy duty Hose Clips Full SS

Tridon 843 Pow-R Gear range

Heavy duty hose clamp wide band with a liner.

Full stainless steel

£2.58 – £5.28 (£2.15+£0.43 VAT)

Trade Enquiry

Description

Tridon 843 Pow-R Gear Range

Heavy duty worm drive hose clamps.

Features extra wide 5/8″ (15.875mm) band width.

High rates of band tension are delivered.

Protective liner prevents extrusion and shearing of hose through the slots in the band.

Extended band design prevents liner from skewing during installation.

Applications include:

  • Machinery
  • Haulage
  • Farm machinery
  • Agriculture
  • Industrial
  • General
  • For use on reinforced hoses



Technical Specifications

Material Specifications

Screw: 5/16″ (7.9375mm) Hex Head; 410 grade stainless steel

Housing: 300 grade stainless steel

Band: 5/8″ (15.875mm), 300 grade stainless steel

Installation Torque: 75-90 in-lbs. (8.5-10 Nm)



Part No.

Size

Min (mm)

Max (mm)

Min (inches)

Max (inches)
843-175 175 25 45 1 1 3/4
843-200 212 32 54 1 1/4 2 1/8
843-250 262 45 66 1 3/4 2 5/8
843-300 312 57 79 2 1/4 3 1/8
843-350 362 70 92 2 3/4 3 5/8
843-400 412 83 105 3 1/4 4 1/8
843-450 462 95 117 3 3/4 4 5/8
843-500 512 108 130 4 1/4 5 1/8
843-550 562 121 143 4 3/4 5 5/8
843-600 612 133 155 5 1/4 6 1/8
843-650 662 146 168 5 3/4 6 5/8
843-700 712 159 181 6 1/4 7 1/8
843-750 762 172 193 6 3/4 7 5/8
843-800 812 184 206 7 1/4 8 1/8
843-850 862 197 219 3 3/4 8 5/8
843-900 912 210 232 8 1/4 9 1/8
