Description

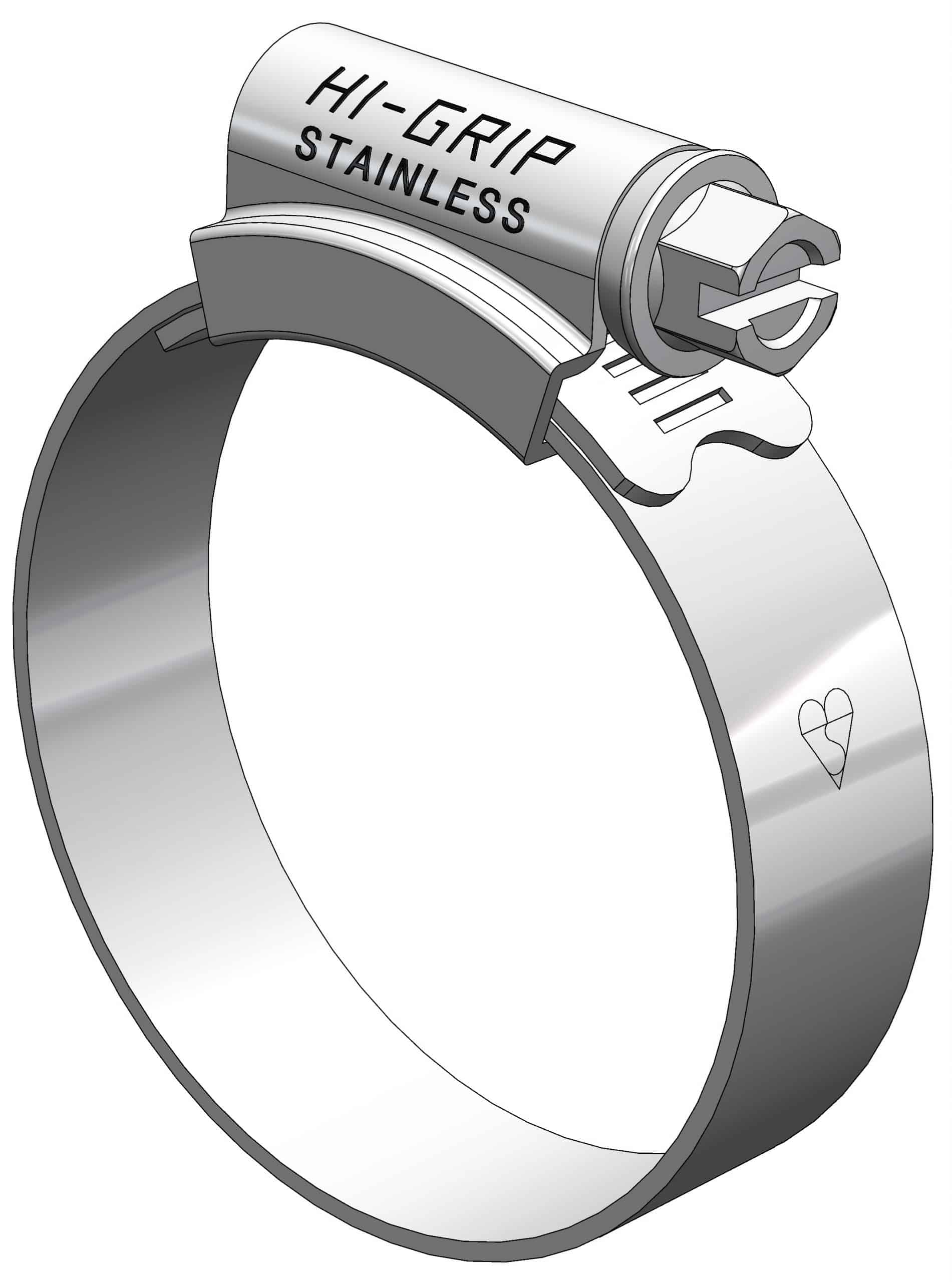

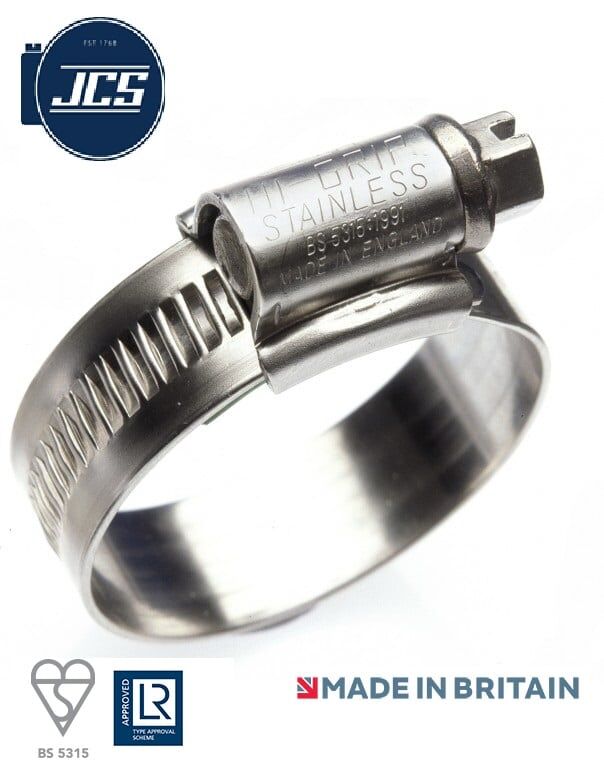

Hi-Grip stainless wdhc 304 Grade & 316 Grade
Hi-Grip stainless hose clips are made entirely from 18/8 marine quality stainless steel and therefore are ideal for salt water and many other highly corrosive environments.
They have Lloyd’s Register Approval for marine, offshore and industrial use.
They are manufactured to BS5315, have BSI Kitemark, Lloyds resgister approved and N.A.T.O. approvals.
Hi-Grip hose clips have fast become the industry standard for marine applications throughout the world due to their high quality and performance.
The Hi-Grip stainless ends at 380mm diameter. We recommend the use of Hi-Torque clamps for sizes of 400mm and above in Stainless Steel.
Made in Great Britain
Technical Specifications
JCS Hi Grip Stainless 304 grade, if 316 grade is required use part number below and add “/316”
Band widths:
9.5-12mm through to 13-20mm = 9mm
14-22mm upwards = 13mm
| Stock Code | Size | Old Size No. | Diameter (mm) | Diameter (ins.) |
| HGS012 | 12 | OOO | 9.5 -12 | 3/8 – 1/2 |
| HGS016 | 16 | MOO | 11-16 | 1/2 – 5/8 |
| HGS020 | 20 | OO | 13-20 | 1/2 – 3/4 |
| HGS022 | 22 | O | 14-22 | 5/8 – 7/8 |
| HGS025 | 25 | OX | 17-25 | 3/4 – 1 |
| HGS030 | 30 | 1A | 22-30 | 7/8 – 1 1/8 |
| HGS035 | 35 | 1 | 25-35 | 1 – 1 3/8 |
| HGS040 | 40 | 1X | 30-40 | 1 1/8 – 1 5/8 |
| HGS045 | 45 | – | 35-45 | 1 3/8 – 1 3/4 |
| HGS050 | 50 | 2A | 35-50 | 1 3/8 – 2 |
| HGS055 | 55 | 2 | 40-55 | 1 5/8 – 2 1/8 |
| HGS060 | 60 | 2X | 45-60 | 1 3/4 – 2 3/8 |
| HGS070 | 70 | 3 | 50-70 | 2 – 2 3/4 |
| HGS080 | 80 | 3X | 60-80 | 2 3/8 – 3 1/8 |
| HGS090 | 90 | 4 | 70-90 | 2 3/4 – 3 1/2 |
| HGS100 | 100 | 4X | 80-100 | 3 1/8 – 4 |
| HGS120 | 120 | 5 | 90-120 | 3 1/2 – 4 3/4 |
| HGS140 | 140 | 6 & 6X | 110-140 | 4 3/8 – 4 1/2 |
| HGS160 | 160 | 7 | 130-160 | 5 1/8 – 6 1/4 |
| HGS180 | 180 | – | 150-180 | 5 7/8 – 7 1/8 |
| HGS200 | 200 | – | 170-200 | 6 5/8 – 7 7/8 |
| HGS220 | 220 | – | 190-220 | 7 1/2 – 8 5/8 |
| HGS240 | 240 | – | 210-240 | 8 1/4 – 9 1/2 |
| HGS260 | 260 | – | 230-260 | 9 – 10 1/4 |
| HGS280 | 280 | – | 250-280 | 9 7/8 – 11 |
| HGS300 | 300 | – | 270-300 | 10 5/8 – 11 3/4 |
| HGS320 | 320 | – | 290-320 | 11 3/8 – 12 1/2 |
| HGS340 | 340 | – | 310-340 | 12 1/4 – 13 3/8 |
| HGS360 | 360 | – | 330-360 | 13 – 14 1/8 |
| HGS380 | 380 | – | 350-380 | 13 3/4 – 15 |
