Jolly 350 Range Full SS

Jolly 350 Range

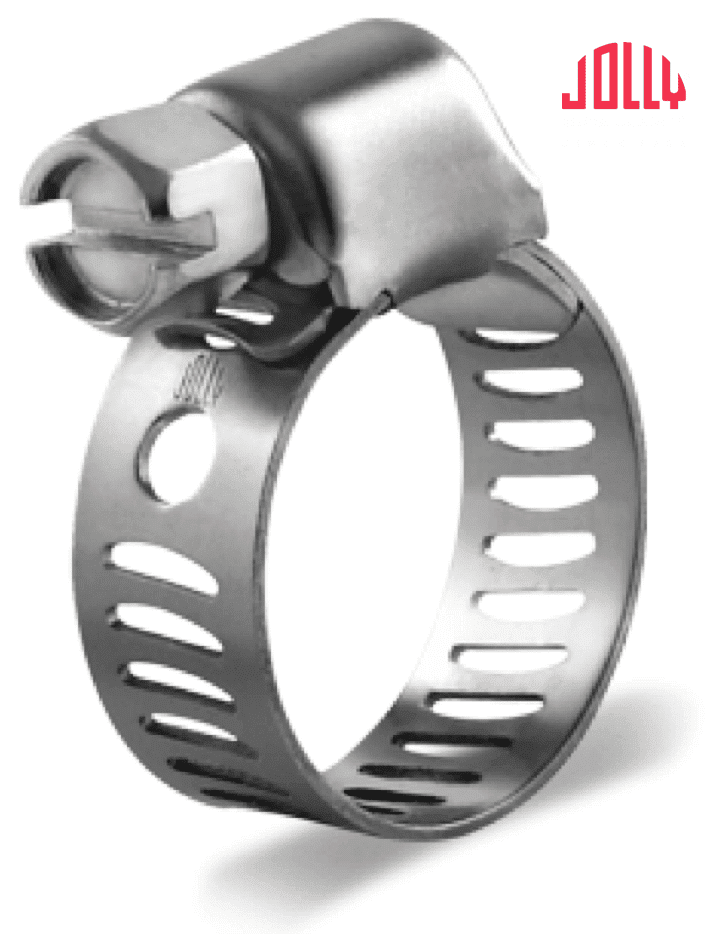

This little American design worm drive hose clip, slips in where others are simply too big to fit.

8mm Band width.

Stainless steel, slotted band hose clip.

Enquire Now

Description

Jolly 350 Range

This little American design worm drive hose clip, slips in where others are simply too big to fit.

arrow (5/16”) band width and smaller screw size (1/4”), it is able to fit into places that the ‘Traditional’ wide band clips cannot be used.

Manufactured from Stainless Steel, and using the ‘Slotted’ band design, the clip offers the user a great deal of strength as ‘the entire band’ is caught on the screw threads and not just half. In addition to the band, the housing is shorter, which gives the user a far greater size range that each clip can be used for and starts from a tiny 6mm (1/4”).

All markets can benefit from us this little clip, including:

Automotive (O. E. M. and Aftermarket)
Marine
Domestic (Various)
General Industry / Engineering

Technical Specifications

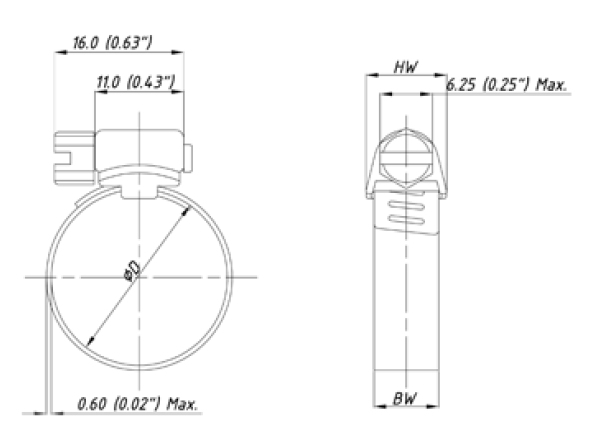

Jolly 350 Range Drawing



Material Grade

All Part 301 Stainless Steel

Stock Code Min (mm) Max (mm)
J350-003 8 12
J350-004 6 16
J350-006 8 22
J350-008 11 25
J350-010 13 27
J350-012 13 32
J350-016 18 38
J350-020 19 44
J350-024 31 51
J350-028 38 57
J350-032 44 63
J350-036 50 70
J350-048 65 88
