Description

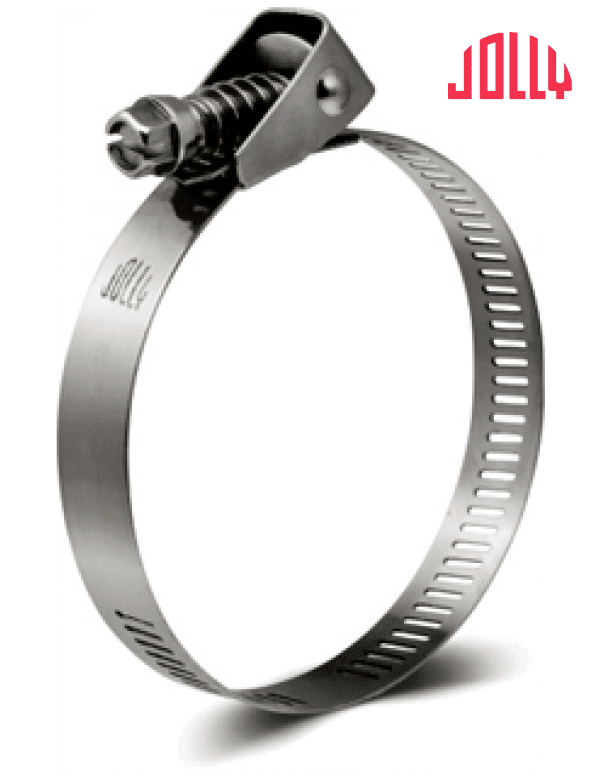

This American style of quick release clip, offers the customer speed, cost effectiveness and quality. The screw is not engaged on the band but captured on a pivot washer at the screws base. The band is applied to the hose / tube / pipe etc. and fed through the housing, underneath the screw until hand tight. The screw is then swivelled down to lie on the band, as a normal hose clip, and then tightened with a screwdriver / nut runner. To take off the clip, simply un-screw the clip, lift the screw from the band, and pull. The clip is off.
Materials for this design are STAINLESS STEEL BAND, HOUSING, WASHER and SCREW.
Sizes start from 26mm upto an impressive 559mm (22”).
Band width 12.7mm (1/2″)
Technical Specifications
Material Grade | ||
Band & Housing Screw | : SS 301 : SS 410 | Available from stock |
Stock Code | Min Dia (mm) | Max Dia (mm) | Min Dia (in) | Max Dia (in) |
J550-020 | 19 | 44 | 3/4 | 1 3/4 |
J550-028 | 25 | 57 | 1 | 2 1/4 |
J550-036 | 25 | 70 | 1 | 2 3/4 |
J550-048 | 38 | 89 | 1 1/2 | 3 1/2 |
J550-056 | 25 | 101 | 1 | 4 |
J550-072 | 51 | 127 | 2 | 5 |
J550-088 | 52 | 152 | 2 | 6 |
J550-104 | 44 | 178 | 2 7/8 | 7 |
J550-128 | 44 | 217 | 2 1/4 | 8 1/2 |
J550-152 | 51 | 254 | 2 | 10 |
J550-188 | 52 | 312 | 2 | 12 1/4 |
J550-248 | 44 | 406 | 1 3/4 | 16 |
J550-280 | 362 | 457 | ||
J550-312 | 355 | 508 | ||
J550-344 | 44 | 559 | 1 3/4 | 22 |
