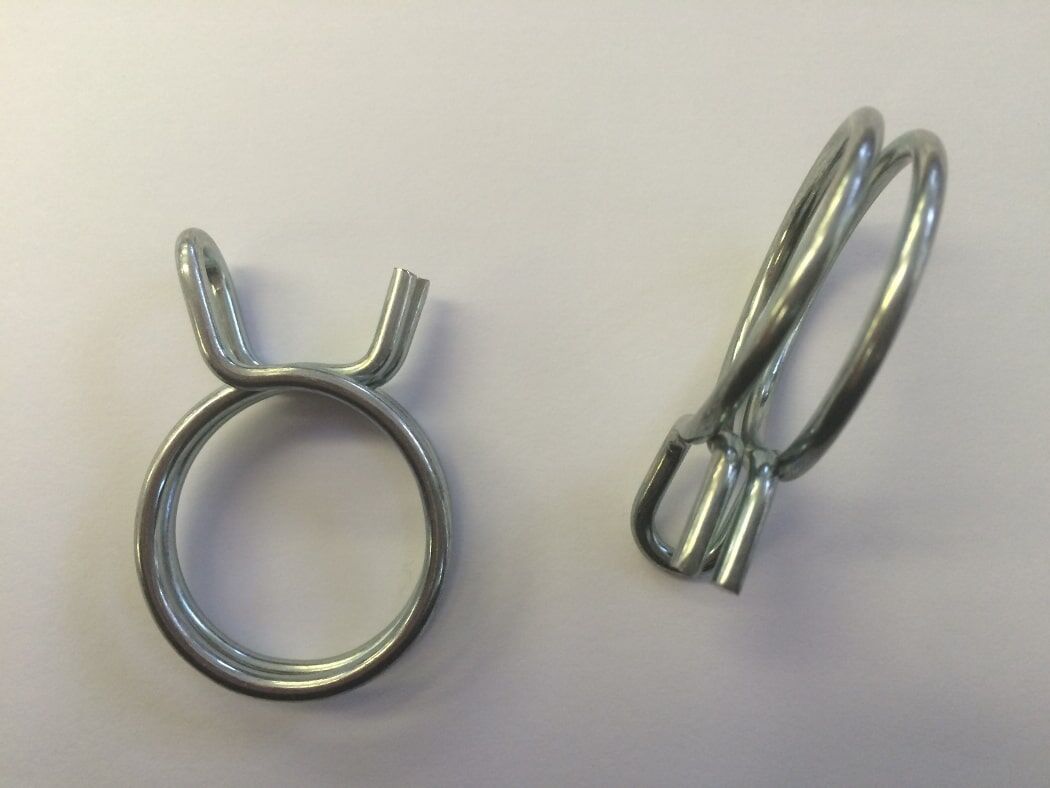

Ydnac Double Wire Hose Clip

£0.00

YDNAC hose clamps are made of durable strand steel with high resistance; they are coated with preservative zinc coating which ensures a practical unlimited durability.

For further information see full description and technical specification.



Enquire Now

Description

YDNAC hose clamps are made of double strand steel wire with high resistance; they are coated with a preservative zinc plating, which ensures a practically unlimited durability.

In comparison with other clips and clamps, they have the following advantages:
YdnacYdnacYdnac

The stress on the plastic or rubber hose caused by the double strand YDNAC clamps is obviously lower – through the clamping action is the same – than the one caused by the single wire clamps; in fact the radial load is distributed over a wider surface of the hose (see pictures A and B). Furthermore, the roundness of wire of which the YDNAC clamps are made allows the cutting action, when compared with the one produced by the regular boot clamps (see pictures A and C), to be much lower, it ensures a longer durability of the flexible hoses and a higher resistance of blow-off.

General Specification for Ydnac Hose Clips

Dimensional Control

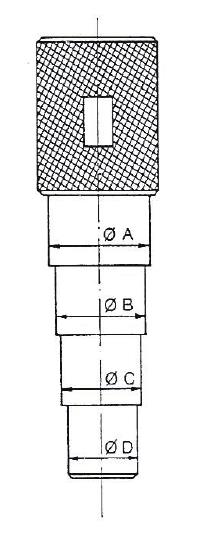

When the clamp is fitted over a tool gage of dia + B, the length of the two ends must be minus or equal to R, the other major or equal to R. Owing to the oval shape of the clip, the test has to be made with plug gauge with four diameters A,B,C,D – decreasing – whose values are shown on the table.

The following points must be observed:

1. The clip, when opened at it maximum, must be able to run easily over dia. ’A’
2. The clip, after being expanded to dia. ’A’. Must fit with a good roundness, over dia. ’A’.
3. The condition of good roundness is ascertained if, between the clip and the gauge, no cylindrical feeler (calibrated wire) of a prescribed diameter passes.
In order to ascertain that permanent set suffered by material after the assembly be within the prescribed limits for the best working of the clip – this will be fitter on the dia. ’A’ of gauge; then (in free condition the clip must not pass over dia. ’D’ (no-go) of the gauge.

PRESERVATIVE COATING

The clips are coated, through the electrolytic process with ZINC, thick ≥8µ as per specs. UNI 4721 (ASTM: A 164-55).
Resistance to corrosion is to be checked in a chamber with salt spray (5% Na Ci) as per specs. UNI 5687-65 (ASTM: B 117-64).
The minimum time of exposure to salt spray before rust marks are apparent in 48 hours.



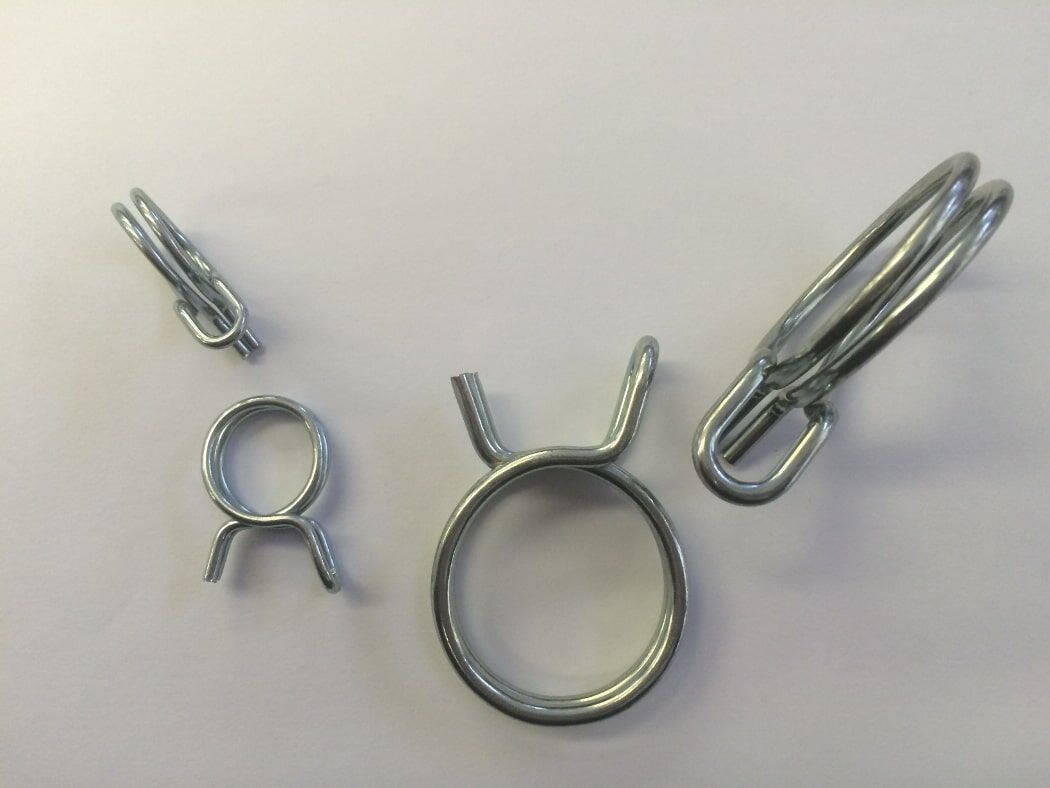

Ydnac Pic 1          Ydnac pic 2YDNAC self-tightening clamps to fit flexible hoses subject to low pressure



Part Number Free ID (mm) Application Diameter Max ID (mm) Wire Diameter Max Width
WC10076 6.80 7.30 – 7.60 7.80 1.0 5.2
WC10081 7.35 7.80 – 8.10 8.30 1.0 5.5
WC10086 7.80 8.30 – 8.60 8.80 1.0 5.5
WC10091 8.27 8.80 – 9.10 9.30 1.0 5.5
WC10096 8.72 9.30 – 9.60 9.90 1.0 5.5
WC10101 9.18 9.80 – 10.10 10.40 1.2 6.3
WC10107  9.72 10.40 – 10.70 11.00 1.2 6.3
WC10113 10.27 11.00 – 11.30 11.60 1.2 6.3
WC10119 10.80 11.60 – 11.90 12.30 1.5 7.3
WC10128 11.40 12.10 – 12.80 13.10 1.5 7.3
WC10133 12.10 12.90 – 13.30 13.60 1.5 7.3
WC10137 12.30 13.30 – 13.70 14.10 1.5 7.3
WC10140 12.70 13.60 – 14.00 14.40 1.5 7.3
WC10148 13.40 14.40 – 14.80 15.10 1.8 8.4
WC10156 14.10 14.80 – 15.60 15.90 1.8 8.4
WC10158 14.73 15.49 – 15.88 16.26 1.8 8.4
WC10164 14.90 15.90 – 16.40 16.80 1.8 8.4
WC10173 15.70 16.80 – 17.30 17.70 1.8 8.4
WC10182 16.50 17.70 – 18.20 18.70 1.9 9.6
WC10192 17.40 18.70 – 19.20 19.60 2.0 9.9
WC10202 18.30 19.60 – 20.20 20.60 2.0 9.9
WC10212 19.20 20.60 – 21.20 21.60 2.0 9.9
WC10221 20.00 21.50 – 22.10 22.60 2.2 10.7
WC10226 20.60 22.00 – 22.60 23.10 2.2 10.7
WC10231 20.70 22.50 – 23.10 24.00 2.2 10.7
WC10242 22.00 23.50 – 24.20 24.70 2.2 10.7
WC10252 22.50 24.40 – 25.30 26.00 2.5 11.4
WC10258 23.40 25.10 – 25.80 26.40 2.5 11.4
WC10268 23.90 25.80 – 26.80 27.40 2.5 11.4
WC10275  25.00 26.70 – 27.50 28.10 2.5 11.4
WC10287  26.10 27.90 – 28.70 29.40 2.5 11.4
WC10300  27.80 29.30 – 30.00 30.90 2.8 12.8
WC10313  28.40 30.40 – 31.30 32.00 2.8 12.8
WC10327 29.70 32.00 – 32.70 34.10 2.8 12.8
WC10341  31.00 33.20 – 34.10 34.80 2.8 12.8
WC10350  32.00 33.90 – 35.00 35.70 3.0 14.0
WC10356  32.50 34.60 – 35.60 36.40 3.0 14.0
WC10372  33.90 36.20 – 37.20 38.00 3.0 14.0
WC10388  35.90 37.70 – 38.80 39.70 3.2 14.8
WC10396  35.60 38.00 – 40.00 41.00 3.2 14.8
WC10405  36.90 39.40 – 40.50 41.40 3.2 14.8
WC10429 37.90 41.00 – 42.90 44.00 3.2 14.8
WC10444 39.10 42.50 – 44.40 45.50 3.2 14.8
WC10460  40.50 44.00 – 46.00 47.00 3.2 14.8
WC10470 43.00 46.00 – 47.00 49.00 3.2 14.8
WC10498  45.30 48.40 – 49.80 50.90 3.5 15.8
WC10520  47.30 50.60 – 52.00 53.20 3.5 15.8
WC10542  49.30 52.70 – 54.20 55.40 3.5 15.8
WC10560  51.00 54.40 – 56.00 57.40 3.5 15.8
WC10574  52.20 56.00 – 57.40 58.80 3.5 15.8
WC10596  55.40 58.20 – 59.60 61.00 3.5 15.8
WC10640  58.00 62.00 – 64.00 66.00 3.8 16.7
