Description

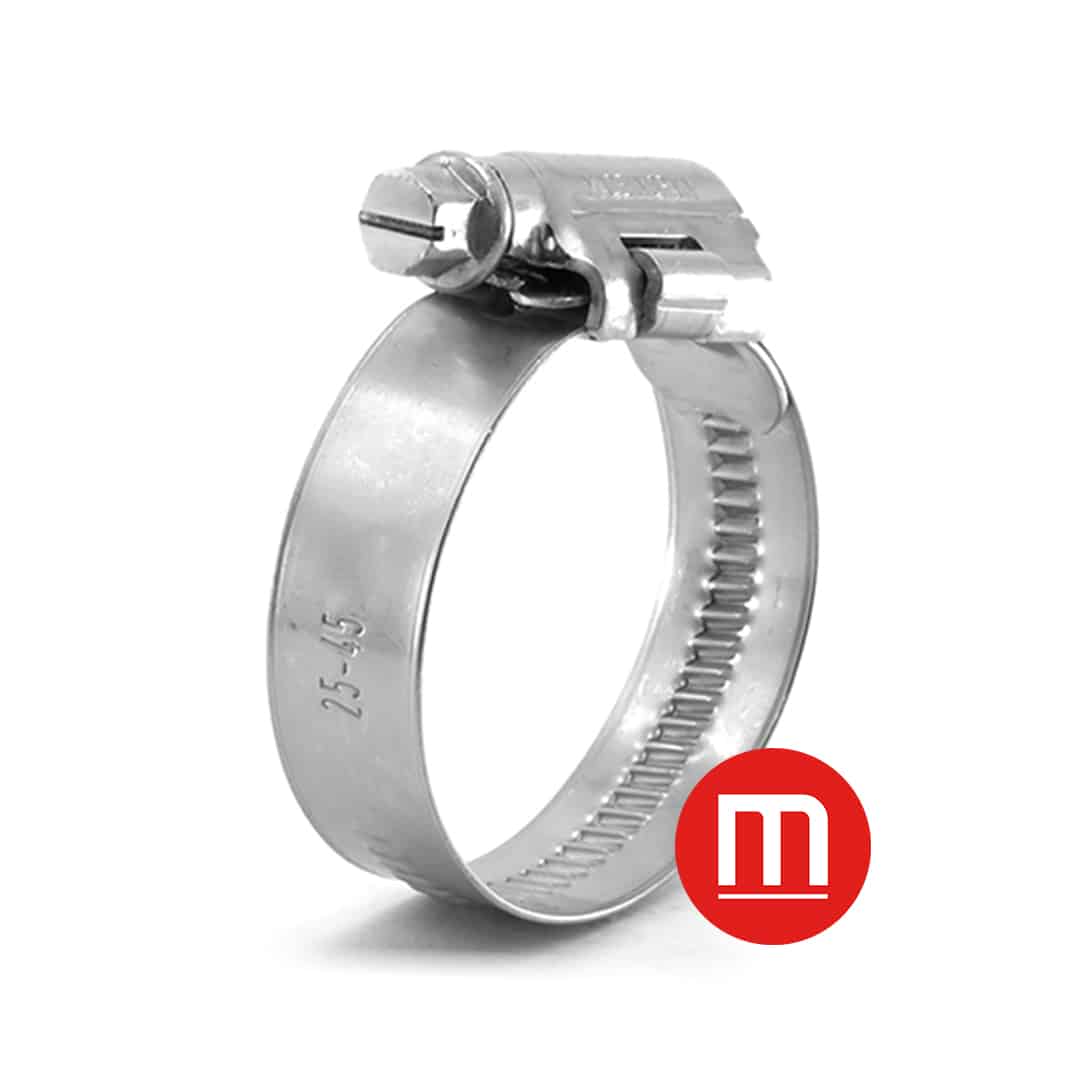

Mikalor high torque heavy duty hose clamps
These Mikalor high-torque clamps are particularly popular in industrial and automotive applications due to its outstanding performance. The perfectly rounded bevelled band edges avoid the clamp cutting into or damaging the hose. The M8 screw and 16mm band width means more torque can be applied than a standard hose clip.
These provide maximum performance in the most demanding of applications.
16mm band width, W4
Material:Band and Housing: Stainless Steel X5Cr Ni1810 (AISI 304), Screw: Stainless Steel (AISI 304)
Finish: Stainless Steel
Corrosion resistance: 400 Hours, Salt Spray (ASTM B-117)
Maximum tightening speed (RPM): 540 ±5
| Our part no. | Application Ø | ||||||||||
| mm | a | Mikalor Part nº W3 | L max. | S +0,10 | h max. | a +0,2 | b max. | Maximum values | |||
| Torque (Nm) | Pressure (Bars) | ||||||||||
| MHT045/W4 | 25-45 | HT (16mm) | 0306600-1 | 39,5 | 0,95 | 13 | 16,0 | 21,0 | 12 | 55 | |
| MHT054/W4 | 32-54 | HT (16mm) | 0306600-2 | 39,5 | 0,95 | 13 | 16,0 | 21,0 | 12 | 50 | |
| MHT067/W4 | 45-67 | HT (16mm) | 0306600-3 | 39,5 | 0,95 | 13 | 16,0 | 21,0 | 12 | 45 | |
| MHT079/W4 | 57-79 | HT (16mm) | 0306600-4 | 39,5 | 0,95 | 13 | 16,0 | 21,0 | 12 | 40 | |
| MHT092/W4 | 70-92 | HT (16mm) | 0306600-5 | 39,5 | 0,95 | 13 | 16,0 | 21,0 | 12 | 30 | |
| MHT105/W4 | 83-105 | HT (16mm) | 0306600-6 | 39,5 | 0,95 | 13 | 16,0 | 21,0 | 12 | 20 | |
| MHT118/W4 | 95-118 | HT (16mm) | 0306600-7 | 39,5 | 0,95 | 13 | 16,0 | 21,0 | 12 | 17 | |
| MHT130/W4 | 108-130 | HT (16mm) | 0306600-8 | 39,5 | 0,95 | 13 | 16,0 | 21,0 | 12 | 14 | |
| MHT143/W4 | 121-143 | HT (16mm) | 0306600-9 | 39,5 | 0,95 | 13 | 16,0 | 21,0 | 12 | 11 | |
| MHT156/W4 | 133-156 | HT (16mm) | 0306601-0 | 39,5 | 0,95 | 13 | 16,0 | 21,0 | 12 | 8 | |
| MHT168/W4 | 146-168 | HT (16mm) | 0306601-1 | 39,5 | 0,95 | 13 | 16,0 | 21,0 | 12 | 6 | |
| MHT181/W4 | 159-181 | HT (16mm) | 0306601-2 | 39,5 | 0,95 | 13 | 16,0 | 21,0 | 12 | 5 | |
| MHT194/W4 | 172-194 | HT (16mm) | 0306601-3 | 39,5 | 0,95 | 13 | 16,0 | 21,0 | 12 | 4 | |
| MHT206/W4 | 184-206 | HT (16mm) | 0306601-4 | 39,5 | 0,95 | 13 | 16,0 | 21,0 | 12 | 3 | |
