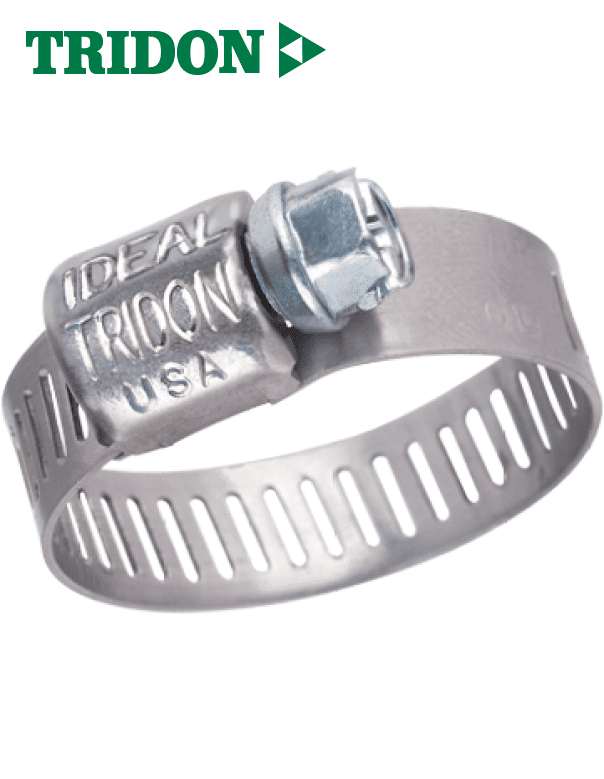

Tridon 325 Range 5/16″ (8mm) Band Width Hose Clips Part SS

Description

Tridon 325 range clamps are tiny, tough and precision engineered for use in small hose applications.

Their slim 5/16″ band and low profile housing make them easy to install in confined areas.

Part stainless steel

Technical Specifications

Material Specifications

Screw 1/4″ Hex Head

Plated Carbon Steel Housing

300 Stainless Band: 5/16″

300 Stainless

Installation Torque: 10 to 15 in-lbs (1.1 to 1.7 Nm)

Part Number

Size Min (mm)

Size Max (mm)

Size Min (Inches)

Size Max (inches)

T325-004

6

16

 1/4

5/8

T325-006

8

22

 5/16

7/8

T325-008

11

25

 7/16

1

T325-010

13

27

 1/2

1 1/16

T325-012

14

32

 1/2

1 1/4

T325-016

18

38

 3/4

1 1/2

T325-020

25

44

 1

1 3/4

T325-024

31

51

 1 1/4

2

T325-028

38

57

 1 1/2

2 1/4

T325-032

44

63

 1 3/4

2 1/2

T325-036

45

70

 1 3/4

2 3/4
