Tridon 550 Quick Release Clamps Full SS – Snaplock

Also known as Snaplock.

Ideal for hard to reach areas.

Full stainless steel.

Enquire Now

Description

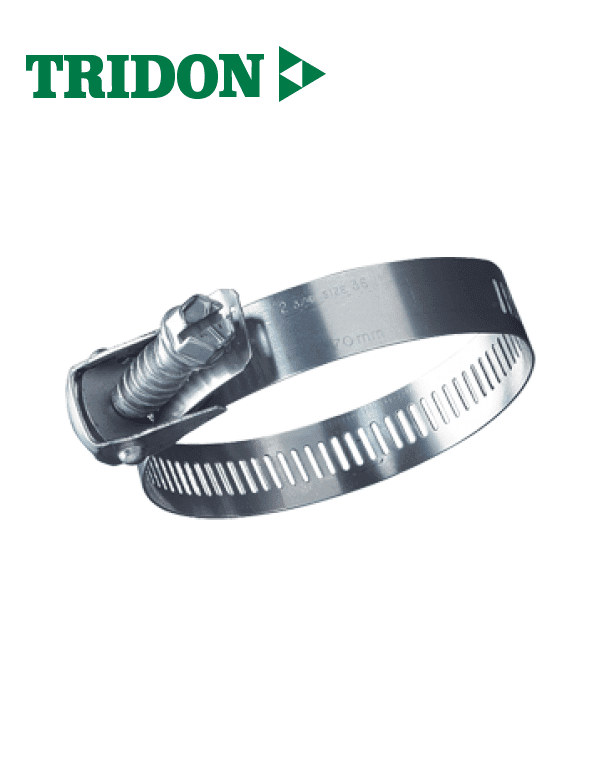

Tridon 550 Quick Release Hose Clips – Snaplock

Quick release style worm drive clamps. The quick and easy way to install a hose clip.

Utilising a pivot washer at the base of the screw, this enables the clip to be fitted quickly and to be used in hard to reach places.

Applications include:
  • General purpose
  • Cable bundling
  • Hanging of signs (lightweight)
  • Ducting & flues
  • & many others…

Technical Specifications

Material Specifications

 Screw: 5/16″ Hex Head; 410 Stainless

Housing: 200 Stainless

Bridge: 410 Stainless

Band: 1/2″, 200 Stainless

Installation Torque: 30 in-lbs (3.4 Nm)



Part No.

Size

Min (mm)

Max (mm)

Min (inches)

 Max (Inches)

T550-020

20

19

 44

 3/4

 1 3/4

T550-028

28

33

 57

 1 5/16

 2 1/4

T550-036

36

25

 70

 1

 2 3/4

T550-048

48

38

 89

 1 1/2

 3 1/2

T550-056

56

25

 102

 1

 4

T550-072

72

51

 127

 2

 5

T550-088

88

51

 152

 2

 6

T550-104

104

45

 178

 2 7/8

 7

T550-128

128

44

 217

 1 3/4

 8 1/2

T550-152

152

51

 254

 2

 10

T550-188

188

52

 313

 2

 12 1/4

T550-248

248

44

 406

 1 3/4

 16

T550-280

280

362

 457

 14 1/4

 18

T550-312

312

48

 508

 1 7/8

 20

T550-344

344

44

 559

 1 3/4

 22
