Description

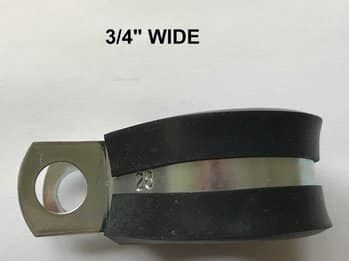

These wider band width rubber lined p clips are available in zinc plated mild steel.
Starting from 5mm diameter.
5mm – 32mm available in a band thickness of 0.8mm.
32mm and above are available in a band thickness of 1.2mm.
Generally available with 2 x 13/32″(10.3mm) round fixing holes. However, they are also available with 17/32″(13.5mm) round fixing holes with an extended leg to suit.
The E. P. D. M. rubber liner offers the user of the ‘P’ clip excellent heat resistance. From a freezing -40oc right up to a burning 140oc E. P. D. M. also offers excellent abrasion, weather, aging and ozone resistance as well as UV stability.
PC range
Technical Specifications
Size Chart | Stock Code | Diameter | Material Thickness | Material Width | Leg Length | Hole Diameter | | PC00533313 | 5mm (0.18″) | 0.8mm | 19mm (3/4″) | 19mm (3/4″) | 10.3mm (13/32″) | | PC00633117 | 6mm (0.25″) | 0.8mm | 19mm (3/4″) | 25mm (1″) | 13.5mm (17/32″) | | PC01033313 | 10mm (0.38″) | 0.8mm | 19mm (3/4″) | 19mm (3/4″) | 10.3mm (13/32″) | | PC01033117 | 10mm (0.38″) | 0.8mm | 19mm (3/4″) | 25mm (1″) | 13.5mm (17/32″) | | PC01333313 | 13mm (0.50″) | 0.8mm | 19mm (3/4″) | 19mm (3/4″) | 10.3mm (13/32″) | | PC01333317 | 13mm (0.50″) | 0.8mm | 19mm (3/4″) | 19mm (3/4″) | 13.5mm (17/32″) | | PC01433313 | 14mm (0.56″) | 0.8mm | 19mm (3/4″) | 19mm (3/4″) | 10.3mm (13/32″) | | PC01433317 | 14mm (0.56″) | 0.8mm | 19mm (3/4″) | 19mm (3/4″) | 13.5mm (17/32″) | | PC01633313 | 16mm (0.62″) | 0.8mm | 19mm (3/4″) | 19mm (3/4″) | 10.3mm (13/32″) | | PC01733117 | 17mm (0.66″) | 0.8mm | 19mm (3/4″) | 25mm (1″) | 13.5mm (17/32″) | | PC01933313 | 19mm (0.75″) | 0.8mm | 19mm (3/4″) | 19mm (3/4″) | 10.3mm (13/32″) | | PC01933317 | 19mm (0.75″) | 0.8mm | 19mm (3/4″) | 19mm (3/4″) | 13.5mm (17/32″) | | PC02233313 | 22mm (0.88″) | 0.8mm | 19mm (3/4″) | 19mm (3/4″) | 10.3mm (13/32″) | | PC02233317 | 22mm (0.88″) | 0.8mm | 19mm (3/4″) | 19mm (3/4″) | 13.5mm (17/32″) | | PC02433317 | 24mm (0.94″) | 0.8mm | 19mm (3/4″) | 19mm (3/4″) | 13.5mm (17/32″) | | PC02433313 | 24mm (0.94″) | 0.8mm | 19mm (3/4″) | 19mm (3/4″) | 10.3mm (13/32″) | | PC02533117 | 25mm (1.00″) | 0.8mm | 19mm (3/4″) | 25mm (1″) | 13.5mm (17/32″) | | PC02533313 | 25mm (1.00″) | 0.8mm | 19mm (3/4″) | 19mm (3/4″) | 10.3mm (13/32″) | | PC02853313 | 28mm (1.12″) | 1.2mm | 19mm (3/4″) | 19mm (3/4″) | 10.3mm (13/32″) | | PC03253317 | 32mm (1.25″) | 1.2mm | 19mm (3/4″) | 19mm (3/4″) | 13.5mm (17/32″) | | PC03233313 | 32mm (1.25″) | 0.8mm | 19mm (3/4″) | 19mm (3/4″) | 10.3mm (13/32″) | | PC03853317 | 38mm (1.50″) | 1.2mm | 19mm (3/4″) | 19mm (3/4″) | 13.5mm (17/32″) | | PC03853313 | 38mm (1.50″) | 1.2mm | 19mm (3/4″) | 19mm (3/4″) | 10.3mm (13/32″) | | PC04453313 | 44mm (1.75″) | 1.2mm | 19mm (3/4″) | 19mm (3/4″) | 10.3mm (13/32″) | | PC04453317 | 44mm (1.75″) | 1.2mm | 19mm (3/4″) | 19mm (3/4″) | 13.5mm (17/32″) | | PC05253313 | 52mm (2.00″) | 1.2mm | 19mm (3/4″) | 19mm (3/4″) | 10.3mm (13/32″) | | PC05253317 | 52mm (2.00″) | 1.2mm | 19mm (3/4″) | 19mm (3/4″) | 13.5mm (17/32″) | | PC05753313 | 57mm (2.25″) | 1.2mm | 19mm (3/4″) | 19mm (3/4″) | 10.3mm (13/32″) | | PC05753117 | 57mm (2.25″) | 1.2mm | 19mm (3/4″) | 25mm (1″) | 13.5mm (17/32″) | | PC06453113 | 64mm (2.50″) | 1.2mm | 19mm (3/4″) | 25mm (1″) | 10.3mm (13/32″) | |
