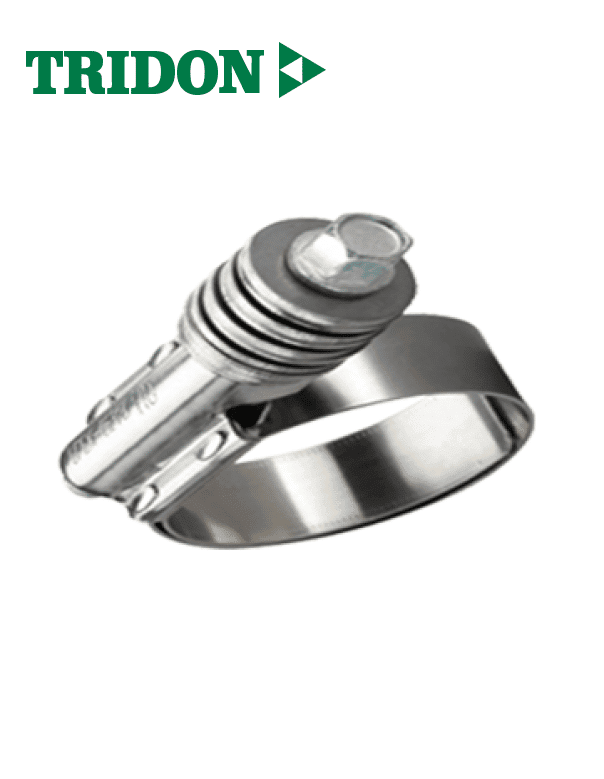

Tridon 847 Flex Gear Full SS

£0.00

Light duty contant tension clamp.

Full stanless steel.

Enquire Now

Description

Tridon 847

Flex-Gear 47 all stainless steel clamps use a Belleville spring design to eliminate “cold flow” leakage in light duty applications and adjust with the hose and fitting to maintain constant tension on the connection, eliminating leak paths.

Flex-Gear clamps are an excellent choice for fluctuating and extreme temperature applications and thermal compensation.

Material Specifications

Screw: 5/16″ Hex Head, 410 Stainless

Housing: 300 Stainless

Spring: 300 Stainless

Band: 9/16″, 300 Stainless

Installation Torque: 50 in-lbs (5.6 Nm)

Technical Specifications

Part Number

Min Size (mm)

Max Size (mm)

Min Size (Inches)

Max Size (Inches)

847-010

14

27

9/16

1 1/16

847-012

16

32

5/8

1 1/4

847-016

21

38

13/16

1 1/2

847-020

20

44

13/16

1 3/4

847-024

27

51

1 1/16

2

847-028

33

57

1 5/16

2 1/4

847-032

40

63

 1 9/16

2 1/2

847-036

46

70

 1 13/16

2 3/4

847-040

52

76

 2 1/16

3

847-044

59

82

 2 5/16

3 1/4

847-048

65

89

 2 9/16

3 1/2
