Description

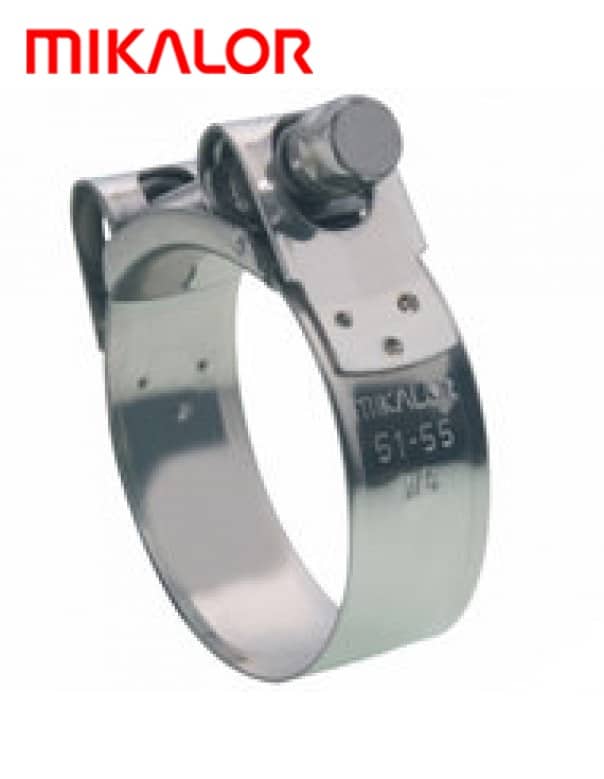

The Supra range is the natural evolution of the Super W1 Clamp.
Due to its revolutionary swiveling bridge, Supra W4 can be mounted in the most awkward applications without having to remove the hose.
It can be opened up and fastened again when in place without dislodging any other parts of the clamp, making assembly much easier.
They have beveled edges which protect the hose from damage.
The Supra W4 clamp complies fully with the RoHs directive EU 20032/95/EC dated 1st July 2006.
The stainless steel bolt together with the captive nut and spacer system allow you to clamp the most demanding of hose assemblies. Supra W4 is a full stainless steel clamp, destined for demanding applications where high corrosion resistance is vital. This top of the range heavy-duty clamp is ideal for marine applications and the foodstuffs industry, as well as for countless industrial applications where AISI-304 stainless steel is specified.
The maximum application pressure can vary depending on the type of hose used and the geometry of the coupling.
Technical Specifications
| OUR PART NO. | MIKALOR PART NO. | SIZE RANGE | BOLT SIZE | MATERIAL |
| SC019/W4 | 03013016 | 17-19mm | M6 | W4 |
| SC021/W4 | 03013024 | 19-21mm | M6 | W4 |
| SC023/W4 | 03013032 | 21-23mm | M6 | W4 |
| SC025/W4 | 03013040 | 23-25mm | M6 | W4 |
| SC027/W4 | 03013059 | 25-27mm | M6 | W4 |
| SC029/W4 | 03013067 | 27-29mm | M6 | W4 |
| SC031/W4 | 03013075 | 29-31mm | M7 | W4 |
| SC034/W4 | 03013083 | 31-34mm | M7 | W4 |
| SC037/W4 | 03013091 | 34-37mm | M7 | W4 |
| SC040/W4 | 03013104 | 37-40mm | M7 | W4 |
| SC043/W4 | 03013112 | 40-43mm | M7 | W4 |
| SC047/W4 | 03013120 | 43-47mm | M7 | W4 |
| SC051/W4 | 03013139 | 47-51mm | M7 | W4 |
| SC055/W4 | 03013147 | 51-55mm | M7 | W4 |
| SC059/W4 | 03013155 | 55-59mm | M7 | W4 |
| SC063/W4 | 03013163 | 59-63mm | M7 | W4 |
| SC068/W4 | 03013171 | 63-68mm | M7 | W4 |
| SC073/W4 | 03013180 | 68-73mm | M8 | W4 |
| SC079/W4 | 03013198 | 73-79mm | M8 | W4 |
| SC085/W4 | 03013200 | 79-85mm | M8 | W4 |
| SC091/W4 | 03013219 | 85-91mm | M8 | W4 |
| SC097/W4 | 03013227 | 91-97mm | M8 | W4 |
| SC104/W4 | 03013235 | 97-104mm | M8 | W4 |
| SC112/W4 | 03013243 | 104-112mm | M8 | W4 |
| SC121/W4 | 03013251 | 112-121mm | M8 | W4 |
| SC130/W4 | 03013278 | 121-130mm | M8 | W4 |
| SC140/W4 | 03013278 | 130-140mm | M10 | W4 |
| SC150/W4 | 03013286 | 140-150mm | M10 | W4 |
| SC162/W4 | 03013294 | 150-162mm | M10 | W4 |
| SC174/W4 | 03013307 | 162-174mm | M10 | W4 |
| SC187/W4 | 03013315 | 174-187mm | M10 | W4 |
| SC200/W4 | 03013323 | 187-200mm | M10 | W4 |
| SC213/W4 | 03013331 | 200-213mm | M10 | W4 |
| SC226/W4 | 03013340 | 213-226mm | M10 | W4 |
| SC239/W4 | 03013358 | 226-239mm | M10 | W4 |
| SC252/W4 | 03013366 | 239-252mm | M10 | W4 |
Material:
Band and bridge: Stainless Steel X5CrNI 18010 AISI-304
Screw: AISI-304 Stainless Steel
Finish:
Stainless Steel
Corrosion resistance:
400h
Salt Spray (ASTM B- 117)
Maximum screwing speed (RPM):
540 ±5
