Description

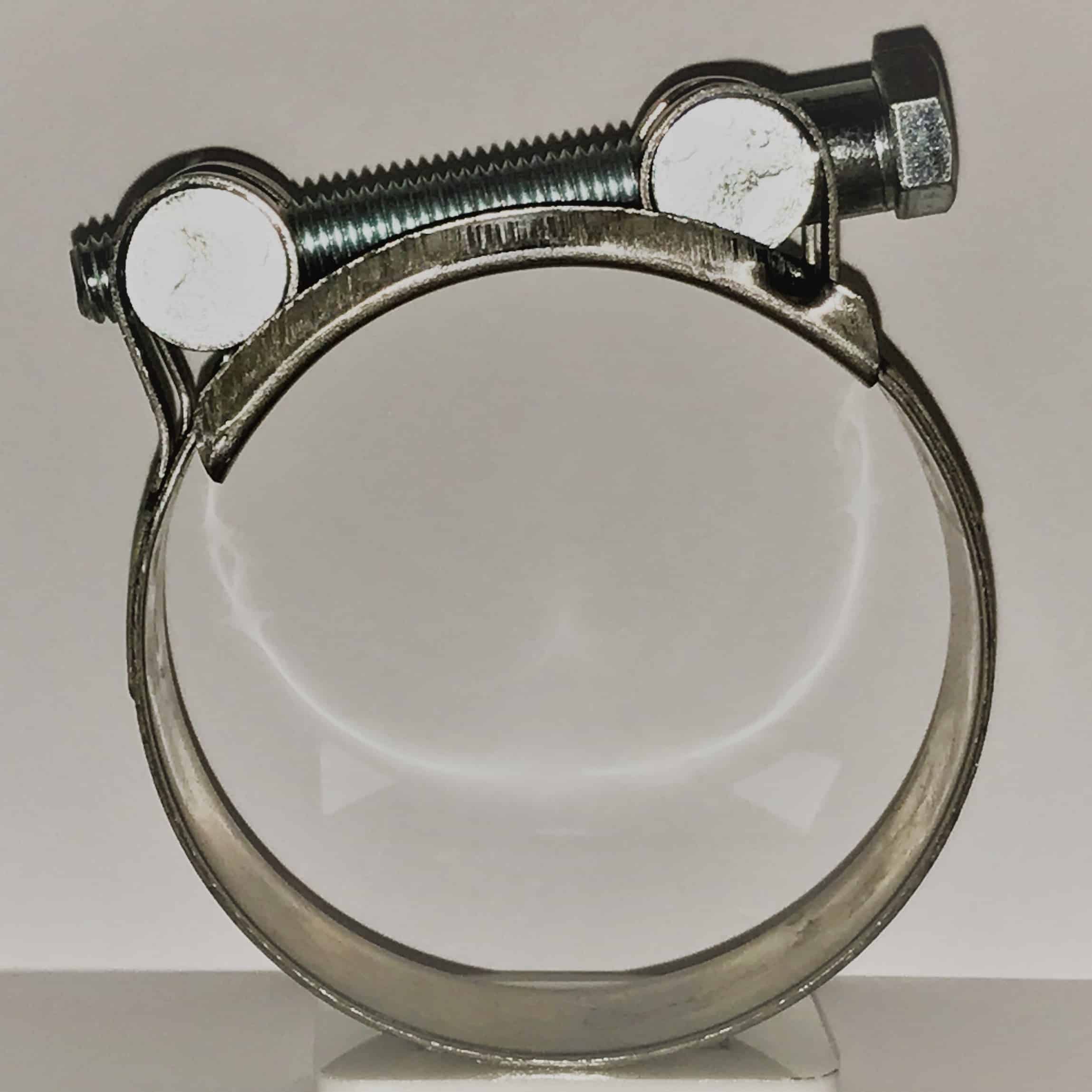

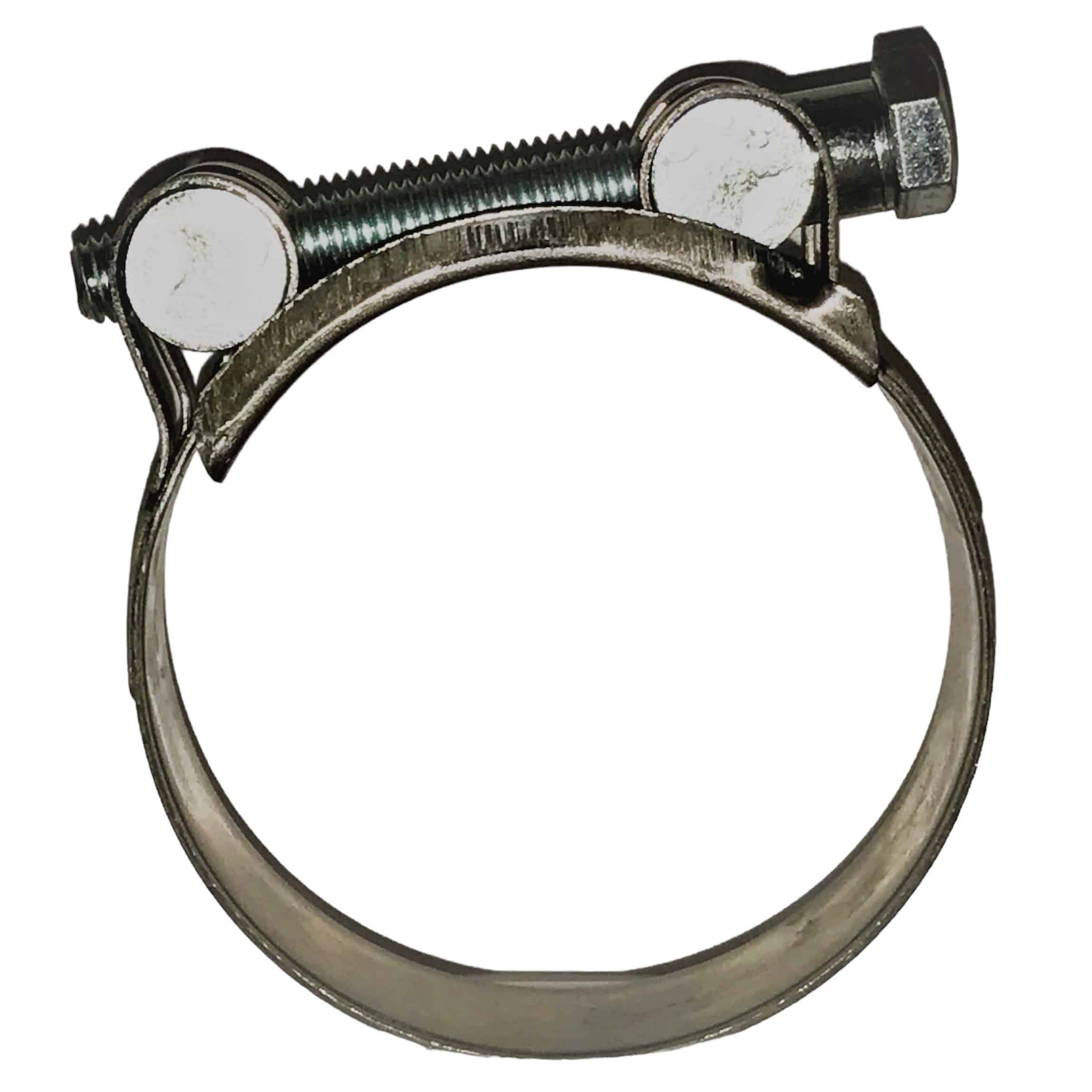

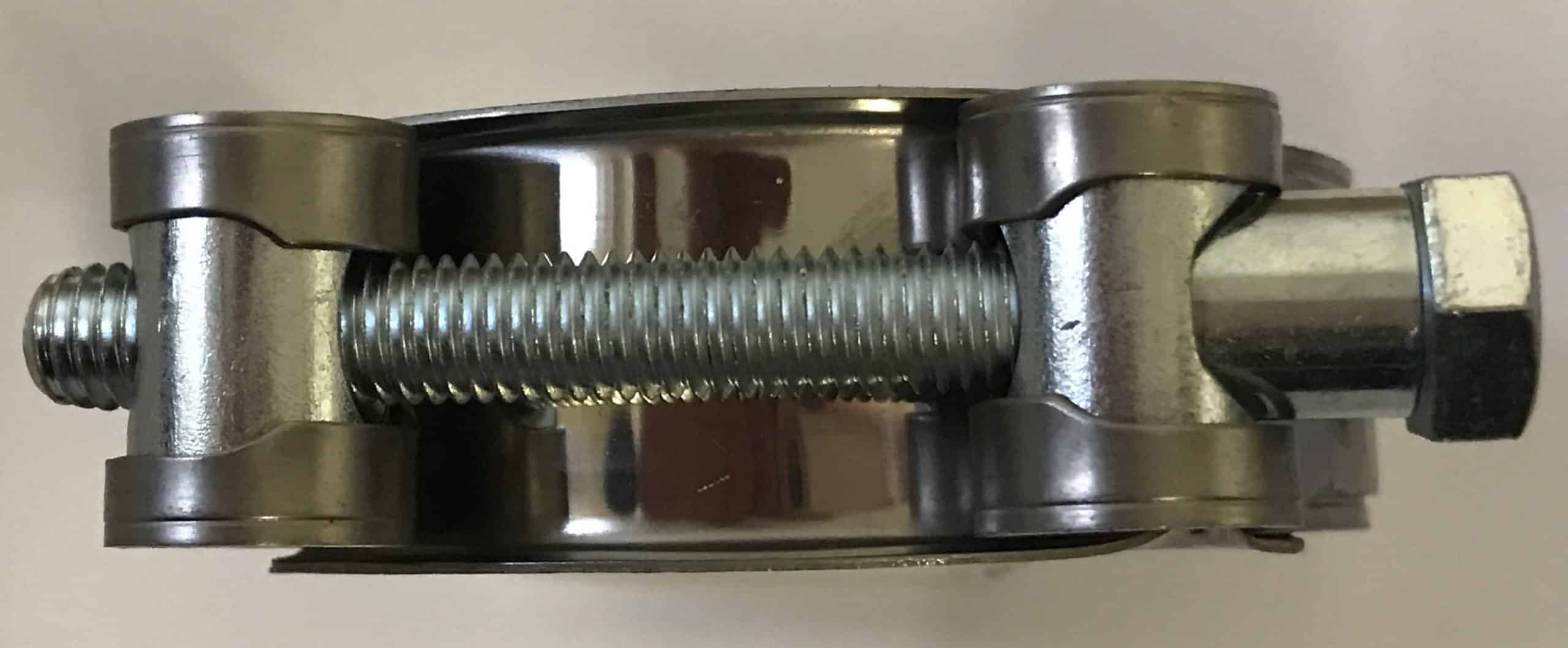

Zero Brand Heavy Duty Bolt Clamp
W2 – 430 grade stainless steel band with 8.8HT bolt
Sizes 17mm through to 252mm Bandwidth between 18 & 28mm depending on size
For uses with industrial hose and automotive silicone hose applications and also where a more robust clamp is required rather than a standard worm drive.
This style of clamp is also used on automtive exhausts.
Technical Specifications
| Stock Code | Size | Band/Housing Material | Nut & Bolt | Bolt size | Band width | Breaking Torque |
| ZSC019 | 17-19 mm | 430 Grade Stainless Steel (W2) | Zinc | M5 | 20mm | 9.0Nm |
| ZSC021 | 19-21 mm | 430 Grade Stainless Steel (W2) | Zinc | M5 | 20mm | 9.0Nm |
| ZSC023 | 21-23 mm | 430 Grade Stainless Steel (W2) | Zinc | M5 | 20mm | 9.0Nm |
| ZSC025 | 23-25 mm | 430 Grade Stainless Steel (W2) | Zinc | M5 | 20mm | 9.0Nm |
| ZSC027 | 25-27 mm | 430 Grade Stainless Steel (W2) | Zinc | M5 | 20mm | 9.0Nm |
| ZSC029 | 27-29 mm | 430 Grade Stainless Steel (W2) | Zinc | M5 | 20mm | 15.0Nm |
| ZSC031 | 29-31 mm | 430 Grade Stainless Steel (W2) | Zinc | M6 | 20mm | 15.0Nm |
| ZSC034 | 31-34 mm | 430 Grade Stainless Steel (W2) | Zinc | M6 | 20mm | 15.0Nm |
| ZSC037 | 34-37 mm | 430 Grade Stainless Steel (W2) | Zinc | M6 | 20mm | 15.0Nm |
| ZSC040 | 37-40 mm | 430 Grade Stainless Steel (W2) | Zinc | M6 | 20mm | 15.0Nm |
| ZSC043 | 40-43 mm | 430 Grade Stainless Steel (W2) | Zinc | M6 | 20mm | 15.0Nm |
| ZSC047 | 43-47 mm | 430 Grade Stainless Steel (W2) | Zinc | M6 | 22mm | 15.0Nm |
| ZSC051 | 47-51 mm | 430 Grade Stainless Steel (W2) | Zinc | M6 | 22mm | 15.0Nm |
| ZSC055 | 51-55 mm | 430 Grade Stainless Steel (W2) | Zinc | M6 | 22mm | 15.0Nm |
| ZSC059 | 55-59 mm | 430 Grade Stainless Steel (W2) | Zinc | M6 | 22mm | 15.0Nm |
| ZSC063 | 59-63 mm | 430 Grade Stainless Steel (W2) | Zinc | M6 | 22mm | 15.0Nm |
| ZSC068 | 63-68 mm | 430 Grade Stainless Steel (W2) | Zinc | M8 | 22mm | 23.0Nm |
| ZSC073 | 68-73 mm | 430 Grade Stainless Steel (W2) | Zinc | M8 | 24mm | 23.0Nm |
| ZSC079 | 73-79 mm | 430 Grade Stainless Steel (W2) | Zinc | M8 | 24mm | 23.0Nm |
| ZSC085 | 79-85 mm | 430 Grade Stainless Steel (W2) | Zinc | M8 | 24mm | 23.0Nm |
| ZSC091 | 85-91 mm | 430 Grade Stainless Steel (W2) | Zinc | M8 | 24mm | 23.0Nm |
| ZSC097 | 91-97 mm | 430 Grade Stainless Steel (W2) | Zinc | M8 | 24mm | 23.0Nm |
| ZSC104 | 97-104 mm | 430 Grade Stainless Steel (W2) | Zinc | M8 | 24mm | 23.0Nm |
| ZSC112 | 104-112 mm | 430 Grade Stainless Steel (W2) | Zinc | M8 | 24mm | 23.0Nm |
| ZSC121 | 112-121 mm | 430 Grade Stainless Steel (W2) | Zinc | M8 | 24mm | 23.0Nm |
| ZSC130 | 121-130 mm | 430 Grade Stainless Steel (W2) | Zinc | M8 | 24mm | 23.0Nm |
| ZSC140 | 130-140 mm | 430 Grade Stainless Steel (W2) | Zinc | M10 | 26mm | 45.0Nm |
| ZSC150 | 140-150 mm | 430 Grade Stainless Steel (W2) | Zinc | M10 | 26mm | 45.0Nm |
| ZSC162 | 150-162 mm | 430 Grade Stainless Steel (W2) | Zinc | M10 | 26mm | 45.0Nm |
| ZSC174 | 162-174 mm | 430 Grade Stainless Steel (W2) | Zinc | M10 | 26mm | 45.0Nm |
| ZSC187 | 174-187 mm | 430 Grade Stainless Steel (W2) | Zinc | M10 | 26mm | 45.0Nm |
| ZSC200 | 187-200 mm | 430 Grade Stainless Steel (W2) | Zinc | M10 | 26mm | 45.0Nm |
| ZSC213 | 200-213 mm | 430 Grade Stainless Steel (W2) | Zinc | M10 | 26mm | 45.0Nm |
| ZSC226 | 213-226 mm | 430 Grade Stainless Steel (W2) | Zinc | M10 | 26mm | 45.0Nm |
| ZSC239 | 226-239 mm | 430 Grade Stainless Steel (W2) | Zinc | M10 | 26mm | 45.0Nm |
| ZSC252 | 239-252 mm | 430 Grade Stainless Steel (W2) | Zinc | M10 | 26mm | 45.0Nm |
