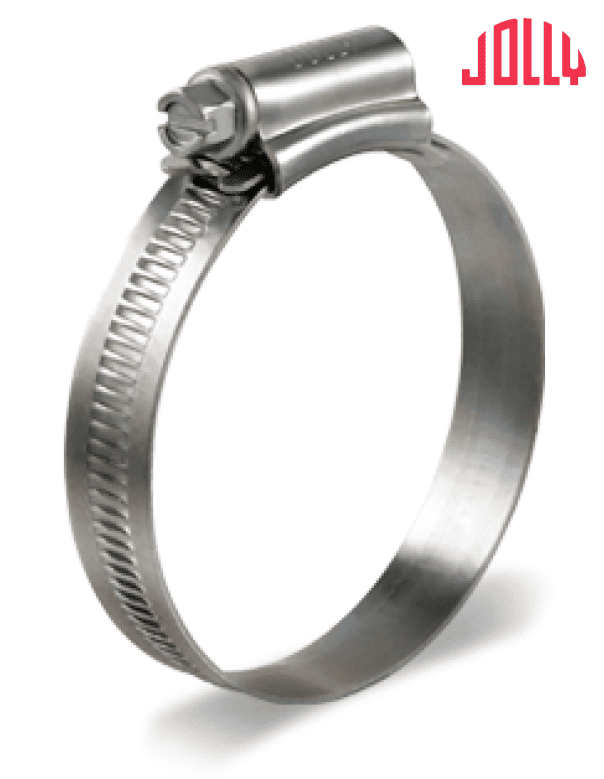

Jolly Worm Drive Zinc-Plated

The Jolly brand of worm drive hose clips have been manufactured in the classic British design since 1968.

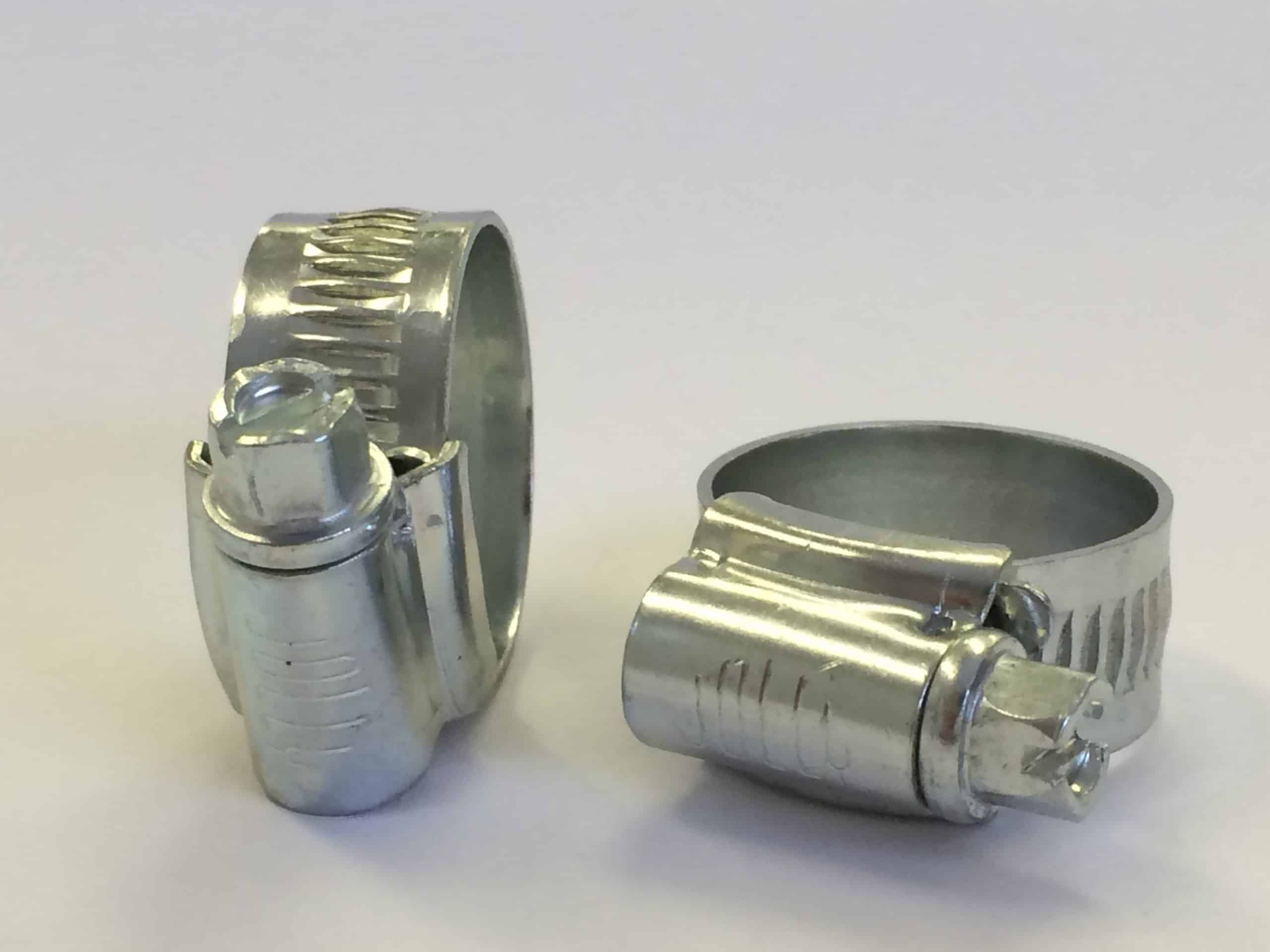

Zinc plated worm drive, sizing available from 9.5mm upto 160mm.

A good quality clip at great prices.

Zero Clips are exclusive distributors of the Jolly branded clip range in the U.K.

Enquire Now

Description

The Jolly zinc plated worm drive hose clips are of high quality which lasts for years and they have been manufactured in the classic British design since 1968.

They are produced to be both tough and rugged so as to withstand the pressures of constant use and are also designed to eliminate hose abrasion and damage under the band with by using smooth chamfered edges at its sides.

A good quality clip at great prices.

Markets and industries :

Automotive

General engineering

Ducting installation

Hose assemblies

Gas & Fuel lines

Agricultural

Irrigation systems

Maintenance (MRO)

Plumbing

Domestic (various)



If you have any questions relating to the Jolly worm drive range, give our

sales team a call on 0121 622-3211 or email and request a call back sales@zeroclips.com





Technical Specifications

Jolly Worm Drive

Stock Code Hose Pipe

O.D mm

U Max V Max W Max Y Max Z Max T Max
J12-J20 12-20 10 10 13 13 22 0.9
J22-J45 22-45 12.5 12 16 16 25 1
J50 & Above 50 & Above 12.5 12 16 26 32 1



Material Grade
All Below Parts Plated Carbon Steel Available from Stock









All the below sizes are available from our extensive stock range.

Other sizes are also available for manufacture in both Zinc Plated & Stainless Steel.

Stock Code Min

(mm)

Max

(mm)

Min

(in)

Max

(in)

J12 9.5 12
J16 12 16
J20 14 20
J22 16 22
J25 18 25
J30 22 30
J35 25 35
J40 30 40
J45 32 45
J50 38 50
J55 42 55
J60 45 60
J70 50 70
J80 60 80
J90 70 90
J100 80 100
J120 100 120
J140 125 140
J160 140 160
