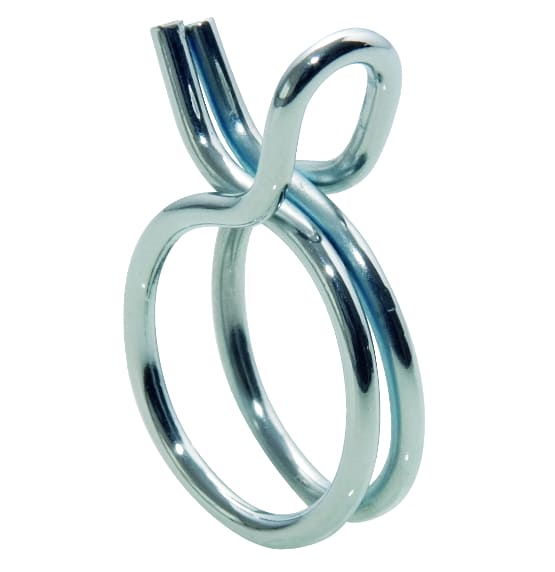

Wire Clip W1 – (DWC Range)

Description

Wire clips are a competitively priced clamping solution in certain applications.
They are used in low-pressure applications and particularly with small diameter sunken spiral hoses.

W1 = Band: Spring steel

Finish: Silver-white Cr3 Zinc-Plated

Technical Specifications



APPLICATION Ø MIN. mm OPTIMUM mm MAX. mm OUR PART NO. r1. r2. h max Ø s 7.3 7.6 7.8 DWC16012 10.7 8.2 5.5 1.0 7.8 8.1 8.3 DWC16020 10.7 8.3 5.5 1.0 8.3 8.6 8.8 DWC16039 10.9 8.6 5.5 1.0 8.8 9.1 9.3 DWC16047 11.0 9.0 5.5 1.0 9.3 9.6 9.9 DWC16055 11.8 9.0 5.5 1.0 9.8 10.1 10.4 DWC16063 13.5 10.5 6.3 1.2 10.4 10.7 11.0 DWC16071 14.8 11.4 6.3 1.2 11.0 11.3 11.6 DWC16080 14.8 11.9 6.3 1.2 11.6 11.9 12.3 DWC16098 16.4 12.4 7.3 1.5 12.1 12.8 13.1 DWC16100 17.2 13.7 7.3 1.5 12.9 13.3 13.6 DWC16119 17.0 14.0 7.3 1.5 13.6 14.0 14.4 DWC16127 18.0 14.5 7.3 1.5 14.4 14.8 15.1 DWC16135 19.6 16.0 8.4 1.8 14.8 15.5 15.9 DWC16143 21.0 16.4 8.4 1.8 15.9 16.4 16.8 DWC16151 22.0 16.6 8.4 1.8 16.8 17.3 17.7 DWC16160 21.3 16.5 8.4 1.8 17.7 18.2 18.7 DWC16178 22.7 17.7 9.9 2.0 18.7 19.2 19.6 DWC16186 23.3 18.0 9.9 2.0 19.6 20.2 20.5 DWC16194 24.0 18.5 9.9 2.0
