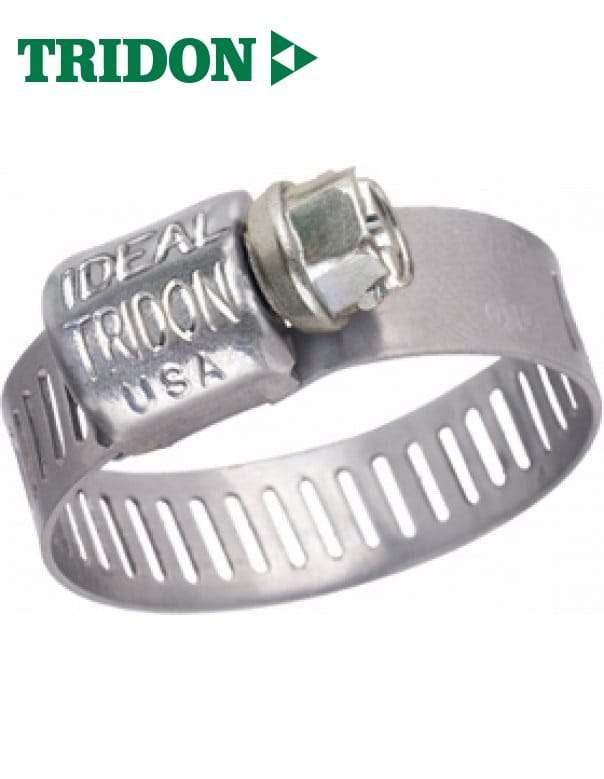

Tridon 350 Range 5/16″ (8mm) Band Width Full SS

Description

Tridon 350 series, 8mm band width full stainless steel clips.

This U. S. A. design worm drive hose clip, slips in where others are simply too big to fit. Employing a narrow 5/16” (8mm) band width and smaller screw size 1/4” (6mm), it is able to fit into places that the ‘traditional’ wide band clips cannot be used.

Manufactured from stainless steel, and using the ‘slotted’ band design, the clip offers the user a great deal of strength as ‘the entire band’ is caught on the screw threads and not just half. The housing is shorter, which gives the user a far greater size range that each clip can be used for and starts from a tiny 6mm (1/4”).

Apllication uses:

• Automotive (O. E. M. and Aftermarket)
• Marine
• Domestic (Various)
• General Industry / Engineering

Technical Specifications

Stock Code

Size Min (mm)

Size Max (mm)

Size (Inches)

Size Max (inches)

T350-004

6

16

 1/4

5/8

T350-006

8

22

5/16

7/8

T350-008

11

25

 7/16

1

T350-010

10

27

 3/8

1 1/16

T350-012

14

32

 9/16

1 1/4

T350-016

16

38

 5/8

1 1/2

T350-020

25

44

 1

1 3/4

T350-024

31

51

 1 1/4

2

T350-028

38

57

 1 1/2

2 1/4

T350-032

44

63

 1 3/4

2 1/2

T350-036

50

70

 2

2 3/4

T350-048

72

89

 2 7/8

3 1/2
